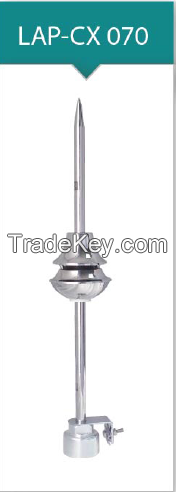

CX 70 Active Lightning Conductor for protection radius 72m

Place of Origin:

Model Number: LAP CX070

FOB Price:

Minimum Order Quantity: 5 68

Packaging Details: Export Packaging

Delivery Time: 15 Days

Supplying Ability:


  • Active ESE Early Streamer Emission Air Terminal SABO LIVA LAP CX-070 in accordance with NFC 17-102 2011 standard.
  • Shaft GI/FRP/SS for raising Air terminal minimum 3 m above the top of the structure to be protected
  • Down conductor > 30*2 mm copper strip
  • Lightning counter 6 digits IP65
  • Test clamp for disconnecting the down conductor and testing the earthing
  • Earthing should be Maintenance free tripod type of copper bonded steel rod


  • Very high grade stainless steel material body, 700 mm long and 2.4 Kg nett weight with pointed tip
  • Based on active early streamer emission principle and consists of ion generator
  • Early streamer warning time of 31µsec
  • Protection radius at 4 m height in Level I, II, III & IV area are 48 m, 55 m, 64m and 72 m respectively
  • METU electrical & electronics test report as per NFC 17-102 standard
  • In each lightning conductor serial number, Model no., CE mark, hologram & manufacturer name is available
  • Packed inside printed carton for each piece
  • Every lightning conductor carry 30 years warranty. certificate is issued from the manufacturer
  • Internal last inspection report of manufacturer will be provided with every serial numbered lightning arrester, if required
  • Sigma test report
  • QA technical conformity certificate
  • TS EN ISO 9001:2008 certificate
  • BS EN ISO 14001:2004 certificate
  • Certificate of registration from World Intellectual Property Organization
  • CE certification
  • Testable by means of external lightning tester.
  • Designed as per NFC17-102 standard which meets all lightning conductor standards
  • Suitable for all types of lightning discharges (negative, positive or lateral)
  • Suitable for all whether and climatic conditions and can be used in any terrain
  • No use of battery or power source is required
  • Tested for 115 KA short circuit in HV test lab, triggering time and temperature -40ºC to +120ºC\"image\"
